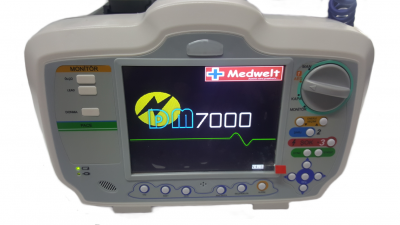

Medwelt Monitörlü Defibrilatör Cihazı DM-7000

Açıklama

Monitörlü Defibrilatör Cihazı Özellikleri

Bifazik 360 Joule

Manuel/İzleme/AED
Modları

Renkli 7″ LCD Ekran

Türkçe Menü

60
Şok veya 3 Saat EKG İzleme

HR:20-300
BPM

Sesli ve Görsel Alarm

7 Sn den az şarj süresi

HR ve SPO2 Takibi

SPO2 (Opsiyonel)

Ekran:

Screen Type: High-resolution display

Screen Size: 7 inches(17.7 cm) diagonally

Sweep Speed: 25mm/sec

Information: Heart Rate, Lead/Pads, Alarm On/Off, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.

Defibrillator:

Waveform: Biphasic

Charge Time: Less than 7 seconds with a new fully charged battery.

Energy Display: Monitor display indicates both selected and delivered energy.

Charge Prompt Type: Voice and visual prompts.

Electrode Impedance Measurement Range: 0-250 ohms.

ECG Monitoring:

Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.

Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.

ECG Size: 0.25, 0.5, 1, 1.5, 2, 4 cm/mV diplay on monitor.

Heart Rate: 20-300BPM.

Heart Rate Alarm: On/Off displayed on monitor, user-selectable.

Smart Alarms: Beeper/voice prompts indicate shockable rhythm.

Battery:

Type: Rechargeable, Ni-MH battery, 12V.

Operating Time: For a new, fully charged battery: 100 defibrillator discharges ,

or 3 hours minimum of continuous ECG monitoring.

Additional parameters will effect operating time with different functions.

Recorder:

Paper: 50mm thermal.

Speed: 12.5mm/sec, 25mm/sec, 50mm/sec. User-selectable 6-second delay.

Printing Method: High-resolution, thermal print head.

Print-out Modes: Manual or automatic, user-configurable.

On/Off Control: Front panel and paddle.

Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.

AED Mode:

AED Function: Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts.

Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV, ventricular tachycardia with rates >=140bpm, and QRS complex wave duration >=140ms.

Charge Control:  Control on device front panel, press key on paddle.

Prompts:  Voice and visual prompts.

Manual Mode:

Energy Selection: Selectable at 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.

Synchronized Mode: Synchronizes defibrillator pulse to patient’s R-wave. ”SYNC” message displayed on monitor.
